LS3 Defender: The Complete Guide to the Defender V8 Swap
The LS3 is the most requested engine in custom Defender building, and the reason is simple. A classic Defender with its original diesel is a wonderful thing at 45 mph and a tiring thing at 70. Fit a 6.2-liter GM V8 and the vehicle stops being a project you drive on weekends and becomes one you can take anywhere, at any speed, without planning the route around it.
That transformation is real. It is also not a drop-in. This guide covers what the LS3 actually is, how it compares with the classic diesels, what the swap requires beyond the engine itself, how the legality works in the United States, what a V8 does to the Defender 90, and who the swap genuinely suits.
The short answer
The LS3 is a 6.2-liter naturally aspirated V8 from GM producing around 430 horsepower and over 400 lb-ft of torque. In a Defender it is paired with a six-speed automatic and requires new engine mounts, a rebuilt cooling system, upgraded brakes, revised suspension and a full custom wiring loom. Done properly it is the most capable and most usable Defender configuration available. Done cheaply it is the fastest way to ruin a good chassis.
What the LS3 actually is
The LS3 is a Gen IV small-block V8 introduced by General Motors in the 2008 Corvette. It is a 6.2-liter, naturally aspirated, pushrod engine with an aluminum block and heads. In Corvette trim it produces in the region of 430 horsepower and 424 lb-ft of torque, and it makes that power without forced induction, without a highly strung state of tune, and without asking anything unusual of the person driving it.
Three things make it the default choice for engine swaps rather than a Coyote, a Hemi or a rebuilt Rover V8.
The first is physical size. A small-block Chevrolet V8 is remarkably compact for its displacement, largely because the pushrod valvetrain avoids the tall cylinder heads of an overhead-cam design. It fits in a Defender engine bay without cutting the bulkhead about, which cannot be said of every V8 people have tried.
The second is parts availability. The LS family has been in production in one form or another for decades and is the single most swapped engine platform in the world. Every bracket, adapter, manifold, sump and accessory drive you could want already exists, is made by multiple suppliers, and is in stock. If something fails in ten years' time, you will be able to fix it in any country you happen to be in.
The third is temperament. The LS3 makes its torque low and wide. It does not need revving to feel strong, which matters enormously in a vehicle geared for a diesel and shaped like a garden shed. It idles quietly, pulls from nothing, and never feels like it is working. That is exactly what you want in a Defender and exactly what a high-revving, peaky engine would get wrong.

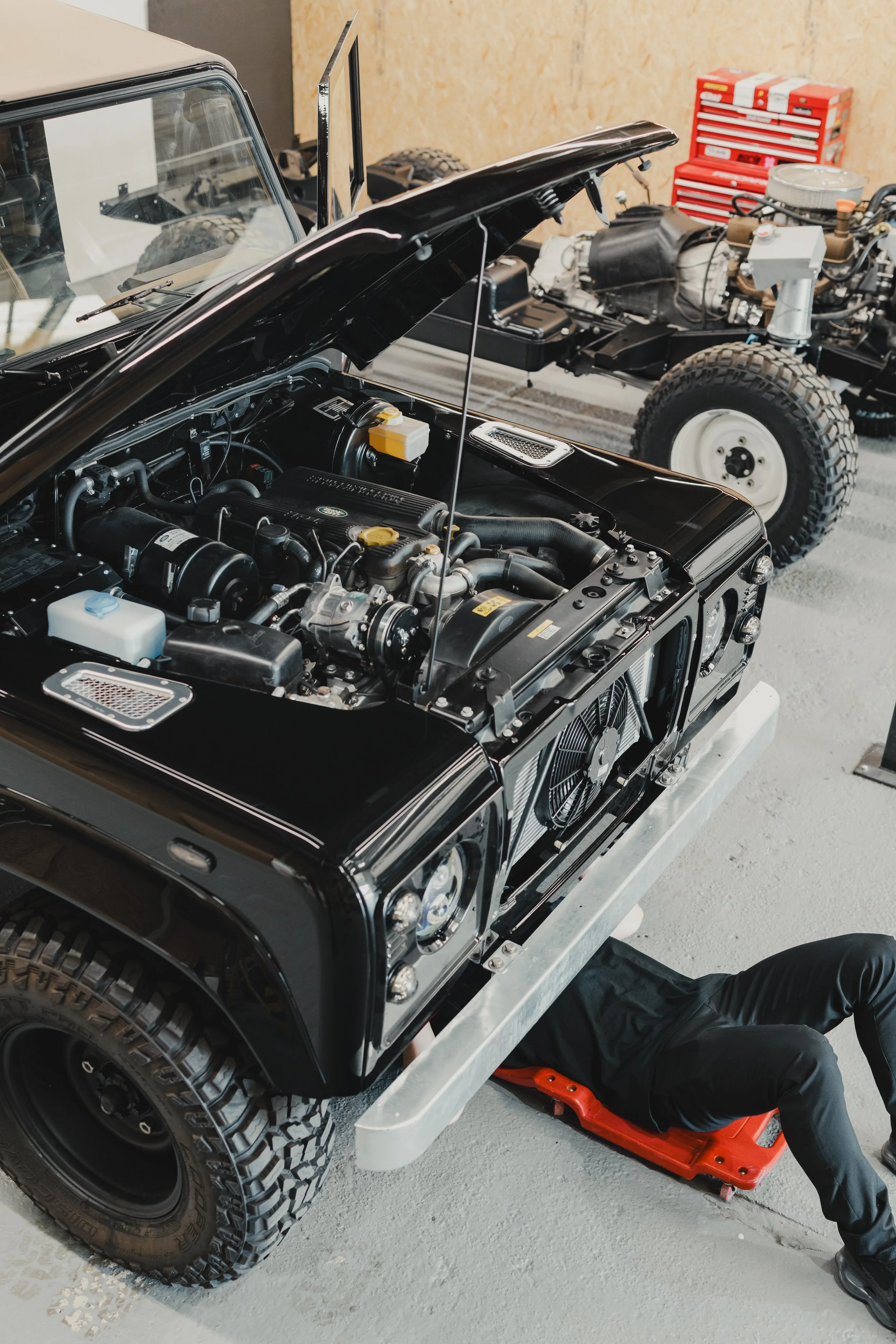

The LS3 in crate form. Compact for 6.2 liters, which is what makes it fit where other V8s do not.
Why not the original Rover V8?
It is a fair question, because the Defender was factory-fitted with a V8 in various markets and the Rover unit has genuine character. The all-aluminum Rover V8 traces back to a Buick design of the early 1960s and sounds glorious.
It also makes roughly a third of the LS3's power, drinks fuel at a rate that surprises people who assumed a smaller engine would be thriftier, and carries a well-documented tendency toward cylinder liner problems and head gasket failure when pushed. For a concours Heritage restoration where originality is the entire point, a properly rebuilt Rover V8 is the right answer. For a vehicle you intend to drive across states, it is not.
Diesel vs V8: which Defender engine is right for you?
Before committing to an LS3, it is worth being honest about the alternative. Most classic Defenders left the factory with a diesel, and a properly rebuilt diesel is still the right engine for a lot of the builds we do. The choice comes down to how you will use the vehicle and what you want it to feel like, not which engine is objectively better.
The rebuilt 300 TDi
The 300 TDi is a 2.5-liter four-cylinder turbodiesel, fitted to the Defender from 1994 to 1998, and the engine most people picture when they think of a classic Defender. It is mechanically simple, direct-injected and intercooled, and it returns good fuel economy. We rebuild ours with an in-house tuning pack and increase capacity to 2.8 liters for more torque. At around 110 horsepower in original form, it is happiest at moderate speeds and on back roads, and it is the natural choice for a Heritage build that should feel the way it originally did. On a US interstate, merging and overtaking take planning.
The rebuilt TD5
The TD5 replaced the 300 TDi in 1998 and was fitted through 2007. It is a 2.5-liter five-cylinder turbodiesel with electronic fuel injection and fly-by-wire throttle, producing around 120 horsepower with noticeably more mid-range pull. We rebuild it with a stage 2 performance package. It is smoother and more capable at highway speed than the 300 TDi, at the cost of slightly more involved electronics, and it suits Defender 110 builds that will see a mix of road and trail.
The LS3 V8
The difference between a diesel Defender and an LS3 Defender is not subtle. Acceleration is immediate, highway merging needs no planning, and the vehicle cruises at 75 mph with power in reserve. It runs on regular gasoline, any qualified mechanic in the US can service it, and parts are everywhere. The trade-offs are fuel consumption and character. The LS3 is smooth and refined, and it does not have the mechanical clatter and deliberateness of a rebuilt diesel.
Off-road and overland use is where the classic diesels still make their strongest case.
Diesel vs V8 at a glance
- Power. Roughly 110 to 120 horsepower for the classic diesels in original form. Over 430 for the LS3.
- Highway driving. The diesels are comfortable at moderate speeds. The LS3 cruises at 75 mph and overtakes without a second thought.
- Fuel economy and range. The diesels win clearly. Expect the LS3 to return figures in the low-to-mid teens in mpg.
- Gearbox. The diesels come with a manual as standard and an automatic as an option. The LS3 is paired with a six-speed automatic, with a manual optional.
- Character. The diesels keep the original mechanical feel. The LS3 makes the Defender drive like a modern vehicle.
- Best for. Diesel for Heritage builds, overland and off-road use, and owners who want the classic feel. V8 for daily driving, US highways, and Modern and Villain builds.
There is also a middle ground. The Ford 2.3-liter EcoBoost produces approximately 310 horsepower and sits between the diesels and the LS3 in both performance and running costs. Every option, including our electric conversions, is laid out on our Defender engine options page, and if you have already decided on diesel, our 300 TDi vs TD5 comparison covers which one to choose.
What the swap actually involves
This is where most of the money goes, and where the difference between a good LS3 Defender and a bad one is decided. Dropping a 430-horsepower engine into a chassis engineered around 110 horsepower changes the requirements of every system attached to it.
- Engine mounts and crossmember. Custom fabricated mounts, with the engine positioned to keep the weight back and the propshaft angles sensible. Get this wrong and you get vibration you will never fully chase out.
- Cooling. The single most common failure point in cheap swaps. An LS3 rejects substantially more heat than a 300 TDi. That means a correctly sized aluminum radiator, electric fans on a proper controller, and an oil cooler. A V8 Defender that overheats in traffic is a V8 Defender that is not finished.
- Transmission. The 6L80E six-speed automatic, managed by a control module matched to the engine. The original five-speed manual is not rated for the torque and the gearing is wrong for the power band.
- Transfer case and driveshafts. Uprated or rebuilt transfer case, new driveshafts with correct phasing, and often a revised handbrake arrangement to suit.
- Brakes. Vented discs front and rear with uprated calipers and a servo matched to the new engine's vacuum. Original Defender brakes are marginal at original power. They are not acceptable at four times it.
- Suspension and steering. Revised spring and damper rates to carry the different weight distribution, uprated steering damper, and usually a power steering box rebuild or upgrade.
- Fuel system. A new tank or in-tank pump assembly capable of delivering fuel injection pressures, plus new lines throughout. Diesel fuel systems cannot be adapted.
- Wiring. A full custom loom. Not a modified original loom. The engine management, transmission control, sensors and safety systems all need to talk to each other properly, and a 30-year-old Defender harness is not the place to start.
- Exhaust. Custom stainless system from the manifolds back, routed around the chassis and gearbox with adequate clearance and heat shielding.

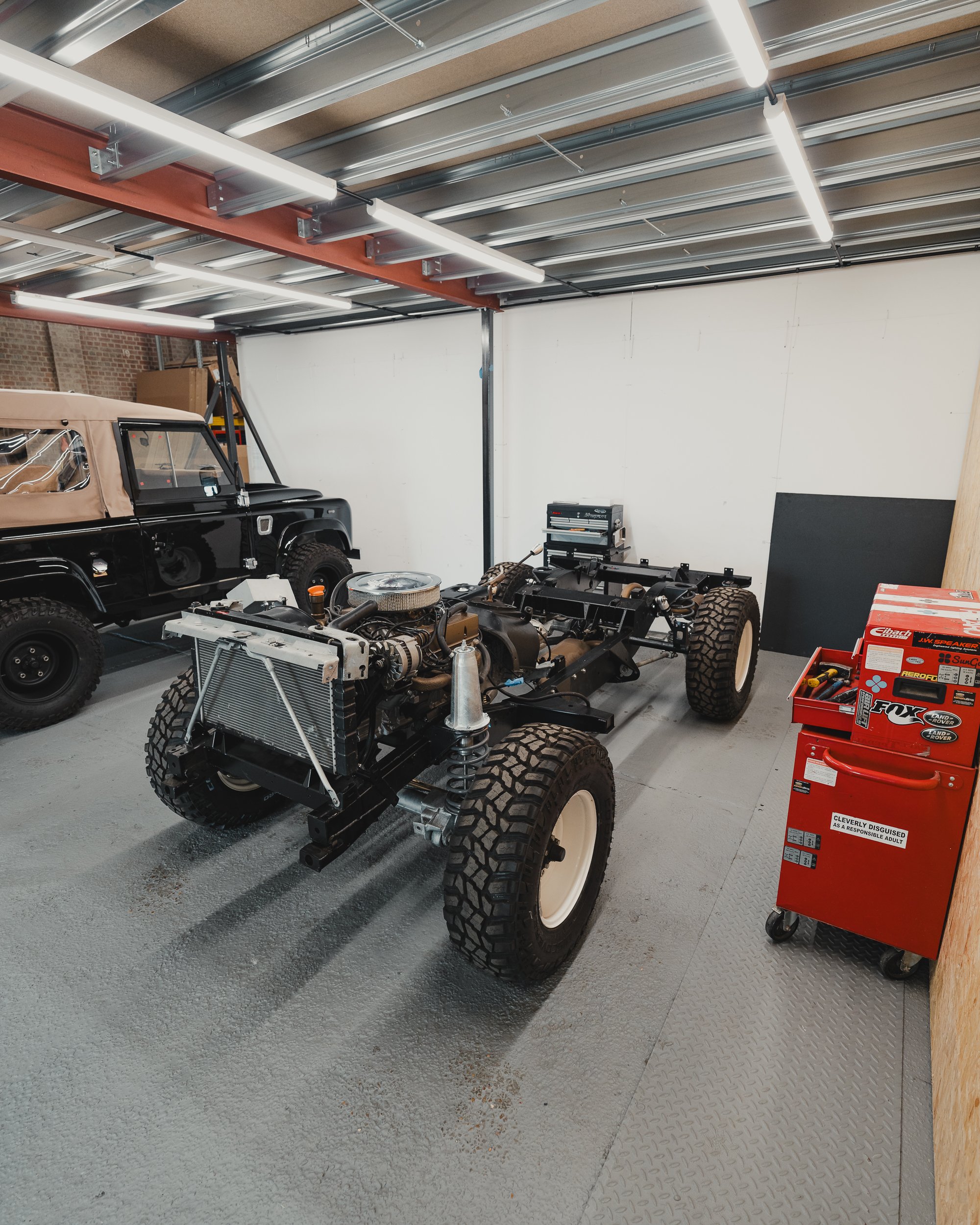

A V8 swap is a chassis-up job. Cooling, brakes and driveline are all resolved before the body goes back on.
None of that is optional. It is the difference between an engine swap and a vehicle. When you see LS3 Defenders advertised at prices that look too good, this list is what has been skipped.
Legality in the United States
This matters more than most buyers realize, and it is where a lot of imported swap vehicles come unstuck.
GM Performance offers the LS3 in an emissions-legal configuration known as E-ROD. The package includes catalytic converters, oxygen sensors, an evaporative emissions system and an engine calibration designed around them, and it carries a CARB Executive Order number. That Executive Order is the legal mechanism that makes the engine acceptable in an emissions-controlled swap, and it is why the E-ROD package exists at all.
An important nuance: holding a CARB Executive Order does not make a swap automatically legal everywhere by default. California still requires the completed vehicle to pass a BAR referee inspection, which checks that all the emissions equipment is present, correctly installed and functioning. Rules also vary between states, and a vehicle's model year and import status affect what applies to it. Anyone telling you a V8 swap is simply "50-state legal" with no further steps is skipping the part that actually takes work.
We build to the E-ROD specification precisely so that the compliance path exists and is documented. Confirm the requirements for your own state before committing to a build.
What it is like to live with
Honestly? Transformative, with one caveat.
The transformation is in usability. An LS3 Defender cruises at 75 mph without drama, overtakes without planning, climbs a grade without dropping two gears, and sits in traffic without you watching the temperature gauge. The automatic gearbox removes the last piece of friction. You stop driving it like a classic and start driving it like a car, which for most owners is the entire point of commissioning a build.
The caveat is fuel. A 6.2-liter V8 pushing a brick through the air returns what you would expect it to return. Owners typically see figures in the low-to-mid teens in mpg terms, and worse in town. If running cost is a primary concern, this is not your engine, and you should be looking at the diesels or the EcoBoost instead.
There is also a character question that nobody talks about honestly. Some of what people love about a classic Defender is the deliberateness of it, the sense that you and the vehicle are both working. The LS3 removes that. Most owners are delighted. A few miss it. It is worth being clear with yourself about which you are before you spend the money.
The V8 Defender 90
The LS3 fits both the Defender 90 and the Defender 110, and the installation is fundamentally the same. But the V8 Defender 90 is one of the most requested builds we do, and it deserves its own section, because the short-wheelbase car changes what the engine feels like.
A Modern edition Defender 90, the road-focused way to build a V8 short-wheelbase Defender.
Why the 90 suits a V8
It comes down to weight. The 90 sits on a 93-inch wheelbase with a shorter, lighter body than the 110, so the same engine has less to move. With an LS3 producing over 430 horsepower, a V8 Defender 90 does 0 to 60 in under six seconds, and the power-to-weight ratio shows in every on-ramp and every overtake. It is the most dramatic configuration we build.
It also changes what the 90 is for. With its original diesel, a classic 90 is a wonderful thing on back roads and a tiring one on the highway. With a V8 and an automatic gearbox it keeps up with modern traffic without planning and becomes a car you can use every day, not just on weekends.
It is also the configuration that demands the most respect. A short-wheelbase vehicle with a high center of gravity and 430 horsepower is not a combination to treat casually, which is why the brakes and suspension matter as much as the engine.
LS3 or LT1
The LS3 is the most popular engine for a V8 Defender 90. For clients registering in California, we also offer the GM LT1 V8 as our California-compliant V8 option, a newer-generation 6.2-liter GM engine that we specify when California emissions compliance is the deciding factor.
What changes around the engine in a 90
- Gearbox. Most V8 90s use the six-speed automatic, which makes city traffic and highway driving effortless. A manual is available if you prefer one.
- Brakes. Essential with this much power in a short, light vehicle. Our Modern 90 uses the Shoreline LOF big brake upgrade.
- Suspension and steering. The Shoreline Dynamic Ride suspension and steering upgrade keeps the 90 composed at speed. Villain builds add upgraded off-road suspension with 35-inch tires on beadlock wheels.
- Chassis and cooling. Every build starts with the chassis stripped, repaired and treated, with the cooling, fuel and electrical systems rebuilt or replaced to suit the engine.
Modern or Villain?
Modern. The road-focused V8 Defender 90, with Dynamic Ride suspension, big brakes and a refined interior. The right choice if the car will mostly live on the road. See the Modern edition.
Villain. The more aggressive V8 90, with wide arches, beadlock wheels, Maxxis Trepador off-road tires and upgraded off-road suspension. The right choice if you want the look and the capability to match the power. See the Villain edition.
Both can be built as a hard top or a soft top. The one trade-off with any 90 is space: it is a four-seater with limited rear room.
V8 in a 90 or a 110?
The 110 is the more complete vehicle. The extra wheelbase settles the ride, the additional weight takes the edge off the delivery in a way that suits touring, and the practicality means you will actually use it. For most clients building a V8 as their primary Defender, the 110 is the better answer. If the drive itself matters most, it is the 90.
If you have not settled that question yet, our guide to the Defender 90 versus the 110 covers the platform decision in full.
Is the LS3 right for your build?
You want a Defender you can drive daily, at highway speed, over long distances, with an automatic gearbox and power in reserve. This is the configuration most US clients commission.
Running cost matters, you want the original mechanical character, or the vehicle is destined for overland and off-road use where torque and range beat outright power.
You want instant torque and near-silent running, your driving is mostly regional rather than remote, and you have somewhere reliable to charge.
The full range of options, including the 200 TDi, the Ford EcoBoost and our electric conversions, is set out on our Defender engine options page. If you are weighing the two classic diesels against each other, we have covered that separately in 300 TDi vs TD5.
Frequently asked questions
An LS3 Defender is a classic Land Rover Defender fitted with a GM LS3 6.2-liter V8 in place of its original engine. The swap includes a six-speed automatic gearbox, a rebuilt cooling system, uprated brakes and suspension, and a full custom wiring loom. It is the most popular engine configuration in Defender restomod building.
Around 430 horsepower and over 400 lb-ft of torque in standard naturally aspirated form. That compares to roughly 110 horsepower for a 300 TDi and 122 for a TD5, which gives a sense of how substantially the vehicle changes.
It can be, but it depends on the specification and the state. The GM E-ROD version of the LS3 carries a CARB Executive Order, which is the mechanism that allows the engine in an emissions-controlled swap. California additionally requires a BAR referee inspection of the finished vehicle, and requirements differ elsewhere. Confirm the rules in your own state before commissioning a build.
Yes. The LS3 fits both the Defender 90 and the Defender 110, and the installation is essentially the same across both. With over 430 horsepower in the lighter short-wheelbase body, a V8 Defender 90 does 0 to 60 in under six seconds, which is why it is one of our most requested builds.
Neither is better in the abstract. The LS3 is better for highway driving, daily use and outright performance. A diesel is better for fuel economy, range, low-speed off-road work and preserving the original mechanical character of the vehicle. The right answer depends entirely on how you intend to use it.
Yes. Alongside the LS3 in GM's E-ROD configuration, which carries a CARB Executive Order, we offer the GM LT1 V8 as our California-compliant V8 option. California still requires the finished vehicle to pass a BAR referee inspection, so the compliance path should be planned from the start of the build.
